Product Details

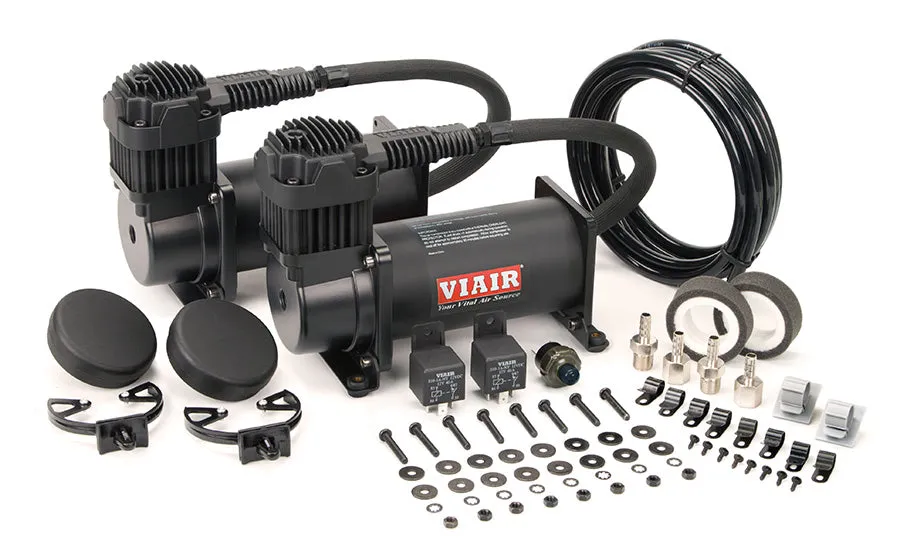

＋400C Dual Performance Value Packs include two 400C compressors, two heavy duty 40-amp relays and a 110 PSI cut-on, 145 PSI cut-off pressure switch. Each Dual Performance Value Pack comes with remote mount filter assemblies and mounting hardware.
Dual Performance Value Packs are rated to fill tank volumes up to 10 gallons.
Note: Use thread sealant for proper installation. Teflon tape is not recommended. Properly sealed, recommended torque is 12 to 15 ft. lbs.
INCLUDED PARTS:
- (2) 400C Chrome Compressors
- (2) Air Filter Assemblies
- (2) Remote Mount Brackets
- (2) Sets of Remote Mount Fittings
- (2) Sets of Spare Air Filter Elements
- (2) Leader Hose Clips
- (6) Air Line Clips with Included Hardware
- (8) Sets of Nuts, Bolts, Washers and Lock Washers
- (2) Heavy Duty 40-Amp Relays
- (1) One Heavy Duty Pressure Switch (110 PSI on, 145 PSI off)
- Air Line (For Remote Mount Filter Installation)
SPECIFICATIONS:
- 12-Volt
- Permanent Magnetic Motor
- Duty Cycle: 33% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 60 Amps
- Dimensions: 9"L x 4"W x 6.75"H (Each Unit)
- Net Weight: 17.30 lbs.
| 2.0 Gallon Tank | Fill Rate |
| 0 to 145 PSI | 54 sec. |
| 110 to 145 PSI | 19 sec. |
| 2.5 Gallon Tank | Fill Rate |
| 0 to 145 PSI | 1 min. 08 sec. |
| 110 to 145 PSI | 23 sec. |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 145 PSI | 2 min. 20 sec. |
| 110 to 145 PSI | 45 sec. |
